Paper & Board Sheeters
The Dreamcut is a line of precision sheeters designed for use on a wide range of papers and boards. Specially conceived for converters it delivers accurate “press ready” sheets guaranteed to meet the demands of the printing and packaging markets. Dreamcut offers the best in precision sheeting and increased productivity with higher optimum running speeds, the capability of working with multiple reels as well as the highest flexibility on the market in terms of materials and run lengths.
Accuracy
The cutting section with its PLC controlled twin motor AC drive and synchronized knife action ensure the accuracy of sheets in both length and squareness.
Press ready
Accurately cut and flat sheets are delivered onto pallets for direct delivery to the printer or subsequent process without the need for further processing.
Flexibility and versatility
The Dreamcut line has been well proven to have the versatility and flexibility to sheet a wide range of papers and boards with an equally wide variety of finishes such as coatings or laminates.
Latest AC drive technology
Dreamcut uses proven AC drive technology to ensure consistency and reliability of operation as well as ease and simplicity of maintenance.
Rapid format change
The layout and style of the sheeters’ operator controls and adjustments have been positioned and designed to minimize downtime and ensure efficiency in machine format changing.
User friendly
Touch screen panel, and strategically placed control points, provide user friendly interfaces.
Dreamcut Line
Dreamcut is offered with additional productivity and efficiency options including cut to register. The Dreamcut line has been specifically designed to reduce downtime by significantly increasing the efficiency of roll changing, pallet loading/unloading and format changing times. Higher productivity is achievable thanks to the “Non-Stop” automatic pallet discharge, automatic splice, slitting knife positioning systems and the touch screen setting for machine and format adjustments.
Contact us for more informationDreamcut Simplex
The Dreamcut Simplex is equipped with a single rotary knife system specially suited for sheeting papers and lighter weight boards. It is ideally suited for cut to register jobs and to place “in line” as part of a complete printing and sheeting line.
Technical Data
Web Width
Up to 1.600 mm (98”)
Mechanical Speed
Up to 300 m/min (1000 ft/min)
Pile height
1,400 mm (55″)
Design knife loads
350 gr/m2(210 lbs per 3,000 sq ft)
Sheet accuracy (1 roll)
± 0,2 mm (0.008″)
Sheet length
min 400 mm (16″)max 1.400 mm (55″)
Dreamcut Twin
The Dreamcut Twin offers a wide range of benefits including its ability to sheet a wide range of papers and boards with an equally wide range of basis weights, calipers and finishes. The increased basis weight capacity of the knife system offers the potential for high speed sheeting of multiple reels at one time.
Technical Data
Web Width
Up to 2.000 mm (98”)
Mechanical Speed
Up to 300 m/min (1000 ft/min)
Pile height
1,600 mm (62″)
Design knife loads
1000 gr/m2(600 lbs per 3,000 sq ft)
Sheet accuracy (1 roll)
± 0,2 mm (0.008″)
Sheet length
min 400 mm (16″)max 1.400 mm (55″)

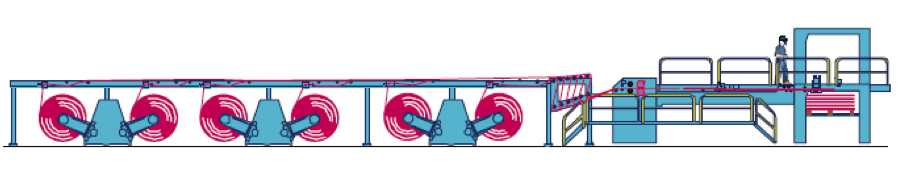

Dreamcut Maxi
Specially conceived for paper mills, the Dreamcut Maxi mounts a twin synchronic knife system. With this line higher production runs and larger paper formats are processed ensuring the best quality standards and optimal performance.
Technical Data
Web Width
Web width up to 2.500mm (65″)
Mechanical Speed
350 m/min (1.150 ft/min)
Pile height
1,700 mm (67″)
Reels diameter
Up to 2.000 mm (78’’)
Design knife loads
1000 gr/m2(600 lbs per 3,000 sq ft)
Sheet accuracy (1 roll)
± 0,2 mm (0.008″)
Sheet length
min 400 mm (16″)max 2.050 mm (80″)
