A new silicone Coating line with:
·Optimized silicone application quantity: 0,3 to 1 g/m2.
·Increased process speed: 400 m/min.
·Inline flexographic three colour printing.

Activity

Paper converting company (speciality thin paper)

Markets

Sanitary paper / Food graded paper / Paper bags

Main key steps of the project

  • NDA (Non-disclosure Agreement) between the client and ILAMCO to ensure confidentiality of the exchanged information.
  • Customized solution definition according to specific customer requirements in terms of line flexibility (materials and applications).
  • Detailed design of the line.
  • Engineering project validation.
  • Production process with periodical meetings with the client in order to follow up the construction process, discuss any technical issues and validate a perfect alignment of the project with the client’s objectives.
  • Assembly and commissioning.
  • FAT (Factory Acceptance Test) in ILAMCO facilities.
  • Disassembly and expedition.
  • Assembly, start up and SAT (Site Acceptance Test) in client’s facilities.
  • Production ramp-up follow-up & operational practices improvement.
  • Sustainable long-lasting partner relationship in order to ensure the good fulfilment of the objectives of the project.
ILAMCO_Daishowa_DSC05729
ILAMCO_Daishowa_DSC05758

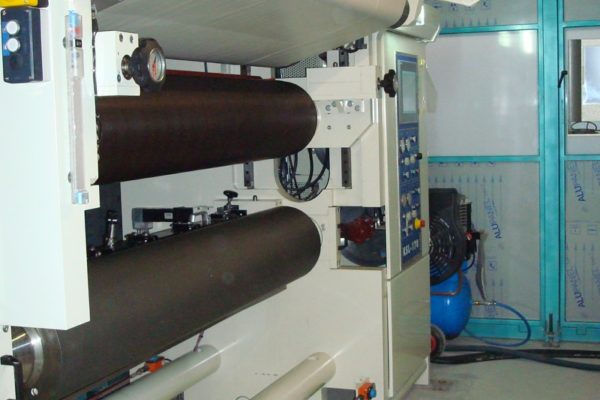

ILAMCO_Daishowa_DSC05761
ILAMCO_Daishowa_Fotografies màquina TKE0003 a KMEC (14-06-2012) 001
Silicone Coating Line

Technological solution scope

  • Automatic non-stop shaftless turret unwinder.
  • 3 servo driven flexo-stack printing units.
  • Offset gravure coating head for solvent less silicone application.
  • Drying section with driven rolls arched (12 modules x 3 m).
  • Direct natural gas burner.
  • Cooling system with 3 chill rolls calenders.
  • Steam humidifier and web conditioning system.
  • Automatic non-stop shaftless turret type rewinder.

Key Technology Achievements

  • High speed silicone coating head.
  • High quality silicone application: 300 m/mn – till 0,3 g/m2 application on 1.700 mm width
  • Easy operation and fast changeovers with high productivity equipment.

Business added value

  • Increased productivity thanks to high speed and non-stop automatic systems.
  • Improved time to market thanks to high speed production.
  • Optimized variable production cost (OEE optimized view) thanks to multiple processes in-line.
  • Penetration to new market sectors thanks to less production due to low silicone application.
